OPN-2001 Portable Memory Barcode Scanner

OPN-2001 Portable Memory Barcode Scanner

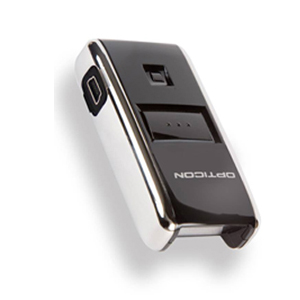

Opticon OPN-2001 Portable Memory Barcode Scanner

The OPN-2001 is simple, small and easy to take with you, taking scanning to another level of mobility. With only two buttons it is easy to use and after scanning all barcodes are quickly transferred through an included USB cable. The OPN-2001 stores up to 15,000 barcodes. When connected to transfer data the device is also charging ensuring the battery has power the next time you need it! OPN-2001, scanning at its purest.

The simplicity of this scanner enables people to use it with merely a short introduction, setting the bar low to start optimizing with scanners.

Available on all current versions of WINDOWS

Add to Cart

Features & Benefits

Simple to Use
One-touch barcode scanning makes data collection simple and easy.

Free StockTake Software
Windows software provided to download barcodes onto your computer.

Compact Form Factor
Small form-factor (3.05cm x 7.10cm x1.52cm) device fits easily into a pocket or on a key chain.

High Storage Capacity
Conveniently holds up to 15,000 barcodes.

Strong Customer Support
Two-year warranty protects your investment.

Downloads


OPN_2001 Cordless Barcode Scanner Brochure
OPN-2001 Quick Start Guide
OPN-2001 User Manual
OPN-2001 Software Drivers

OPN-2001 Specifications


Operation
CPU ARM7 32-bit
O/S Proprietary
RTC Supports year, month, day, hour, minute, second (leap year supported)
Memory
FlashROM 512 kB (Program storage + >15.000 barcodes + time stamp)
RAM 64 kB
Operating indicators
Visual 1 LEDbar (red/green/orange)
Non-visual Buzzer
Operating keys
Entry options 2 keys total, 1 clear key, 1 scan key
Communication
USB Mini USB, Ver. 1.1, VCP
Power
Rechargeable battery Lithium-Ion 3.7V 150mAh
Operating time 1.000 scans (1 scan / 5 sec)
Charging method Enclosed USB cable
Barcode scanner Optics
Light source 650 nm visible laser diode
Scan method Vibrating mirror
Scan rate 100 scans/sec
Reading pitch angle -30 to 0º, 0 to +30º
Reading skew angle -50 to -8º, +8 to +50º
Reading tilt angle -20 to 0º, 0 to +20º
Curvature R>15 mm (EAN8), R>20 mm (EAN13)
Min. PCS value 0.45
Depth of field 60 - 570 mm / 2.36 - 22.44 in (1.0 mm / 39 mil), 40 - 360 mm / 1.57 - 14.17 in (0.5 mm / 20 mil), 40 - 220 mm / 1.57 - 8.66 in (0.25 mm / 10 mil), 40 - 120 mm / 1.57 - 4.72 in (0.15 mm / 6 mil), 50 - 100 mm / 1.97 - 3.94 in (0.127 mm / 5 mil), at PCS 0.9 UPC
Supported Symbologies
Barcode (1D) JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code Chinese Post, Korean Postal Authority code
Durability
Temperature in operation 0 to 40 °C / 32 to 104 ºF
Temperature in storage -20 to 60 ºC / -4 to 140 ºF
Ambient light immunity White 3,000 lx max, Fluorescent 3,000 lx max, Direct sun 50,000 lx max
Protection rate IP 42
Physical
Dimensions (w x h x d) 32 x 62 x 16 mm / 1.26 x 2.44 x 0.63 in
Weight body Ca. 28 g / 1 oz (incl. battery)
Case ABS, Black
Regulatory & Safety
Product compliance CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
